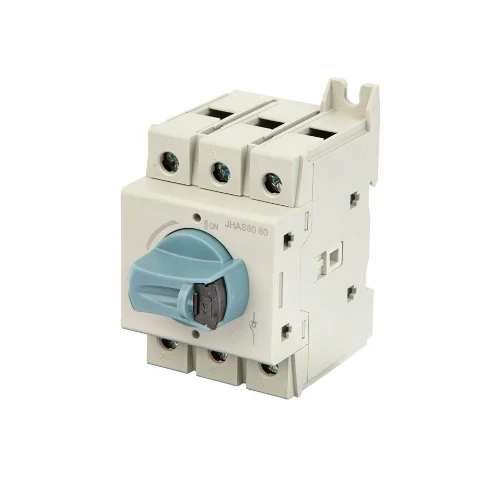

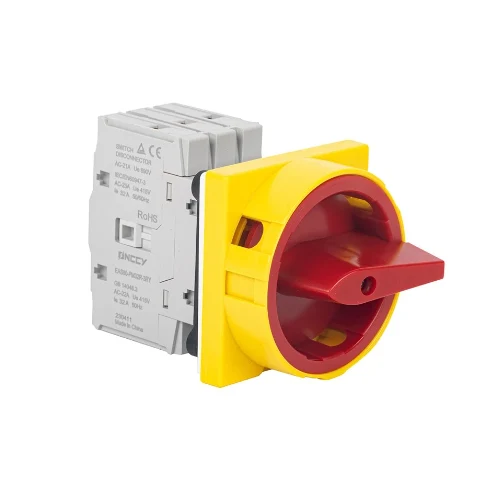

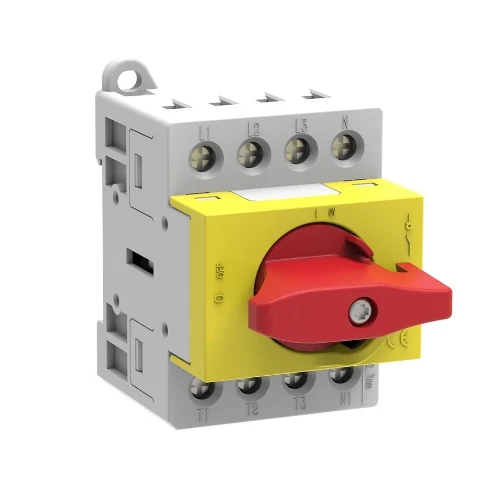

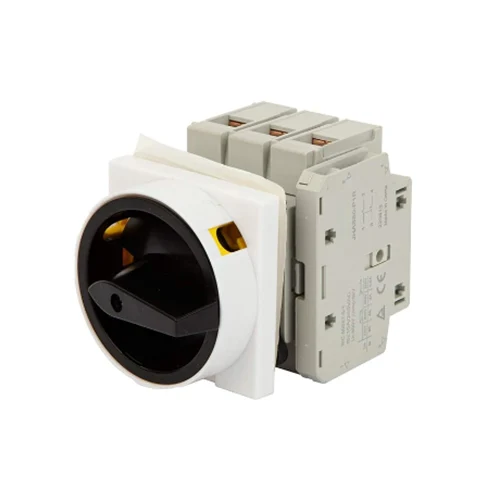

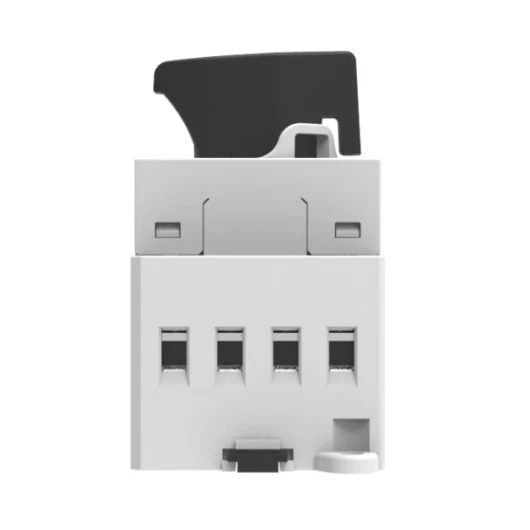

63A 80A Dual Power Isolation Transfer Switch

As a professional high quality 63A 80A Dual Power Isolation Transfer Switch manufacturer, you can rest assured to buy 63A 80A Dual Power Isolation Transfer Switch from our factory. And we will offer you the best after-sale service and timely delivery.63A 80A Dual Power Isolation Transfer Switch are devices or systems that isolate a particular circuit for maintenance and prevent currents from passing through. The main isolator switch, also known as an isolator, typically consists of two sets (or one set) of electrical contacts mounted in series. The line side is connected to a power supply outside the building.63A 80A Dual Power Isolation Transfer Switch ensure an electrical circuit is completely de-energised for routine service and maintenance and can be shut down quickly in the event of an emergency. The switch separates the circuit from the main power source and discharges any current trapped in the circuit, rendering it safe to work on and ensuring fast shut down and the absence of any electrical current when an emergency stop is required.

Send Inquiry

Product Description

Wenzhou Changjiu Technology Co., Ltd. is a professional China 63A 80A Dual Power Isolation Transfer Switch manufacturer and supplier, known for its quality service. Adhering to the pursuit of perfect quality of products, so that our 63A 80A Dual Power Isolation Transfer Switch have been satisfied by many customers. In order to ensure the quality and customer needs, we have cooperated with domestic power groups with strong production strength. We will strictly screen each supplier and send videos to customers to watch.

Current		20A	32A	40A	63A	80A
Rated carry current		20A	32A	40A	63A	80A
Rated operating current AC-23A		16A	25A	32A	45A	45A
Rated operating current AC-3		12A	23A	30A	37A	37A
Rated power control AC-23A	240V	4KW	7.5KW	9KW	15KW	15KW
Rated power control AC-23A	440V	7.5KW	12.5KW	16KW	22KW	22KW
Rated power control AC-3	240V	3KW	5.5KW	7.5KW	11KW	11KW
Rated power control AC-3	440V	5.5KW	11KW	15KW	18.5KW	18.5KW
UL-CSA Motor load	240V	3KW	5KW	5KW	10KW	10KW
UL-CSA Motor load	440V	7.5KW	10KW	10KW	20KW	20KW
Rated short-time withstand current		250A	400A	500A	600A	850A
Cable		0.5-10MM2			1-16MM2
Screw torque		0.8-1.7N·m			1.5-2N·m
Rated insulation voltage		690V
