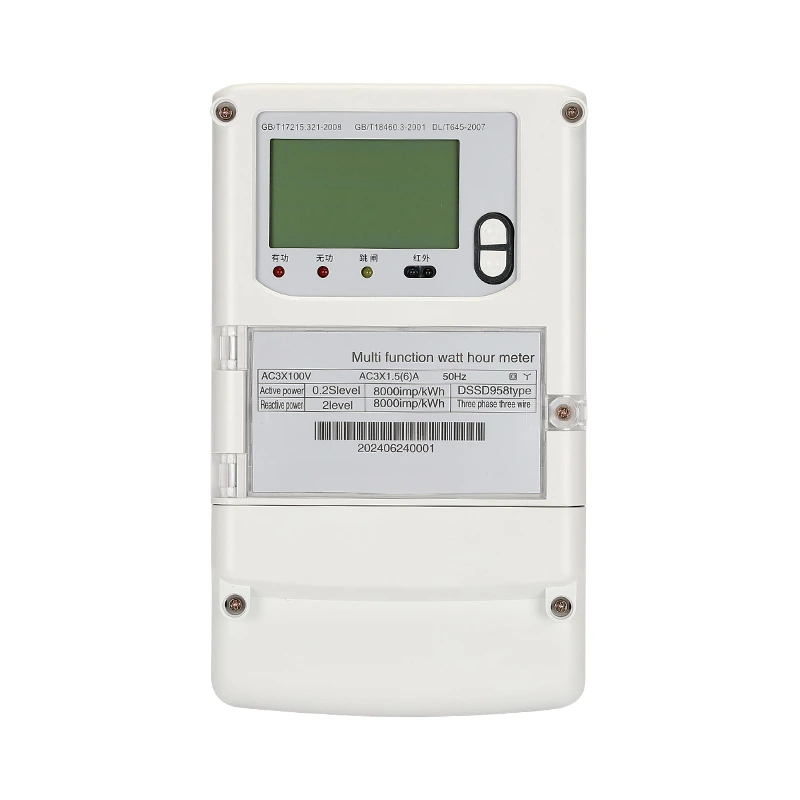

Three Phase Four Wire Multifunctional Energy Meter

CJ Electric is a large-scale hree phase four wire multifunctional energy meter manufacturer and supplier in China.The three-phase four-wire and three-phase three-wire multifunctional energy meters are a new generation of intelligent high-tech energy metering products developed and produced by our company. It adopts the latest integrated circuit technology and advanced software algorithms, and is designed and manufactured according to relevant international (IEC) standards for energy meters and my country's power industry standards/T614-2007, DL/T645-2007 and State Grid series standards.

Send Inquiry

Product Description

Energy Meter Installation Dimensions:

Parametric

Accuracy level	Active 0.5 (0.2)s class, active 1, reactive 2
rated frequency	50Hz
Starting current	0.001In
submerge	Designed with anti-submarine logi
External Dimensions	265mm×170mm×75mm
weights	1.8CJ

Normal Operating Voltage	0.9Un-1.1Un
Limit operating voltage	0.75Un~1.15Un
Voltage Line Power Consumption	≤2W and5VA
Current Line Power Consumption	<IVA
Data Backup Battery Voltage	3.0Vpc
Outage Meter Reading Battery Voltages	3.6Yoc

normal working temperature	-25℃~+55℃
Limiting Operating Temperature	-35℃~+65℃
Storage and transport temperatures	-40℃~+70℃
Storage and working humidity	≤85%
