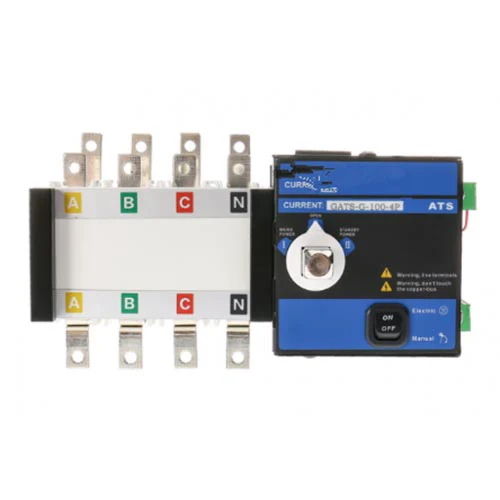

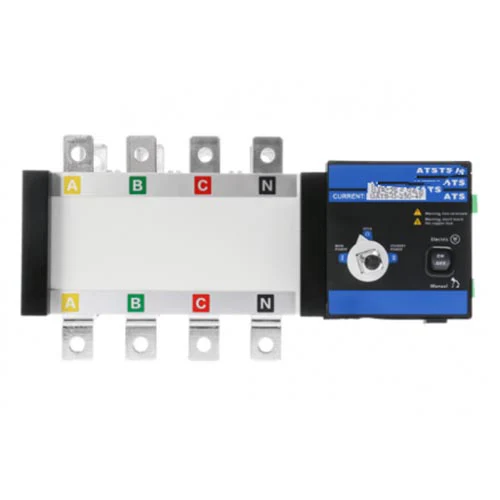

GATS-G Isolation Automatic Transfer Switch (ATS)

As a professional high quality GATS-G Isolation Automatic Transfer Switch (ATS) manufacturer, you can rest assured to buy GATS-G Isolation Automatic Transfer Switch (ATS) from our factory. And we will offer you the best after-sale service and timely delivery.The primary wiring diagram to see the picture. The control power is derived from normal power，emergency power cand N phases. Ⅰ and Ⅱ line control power AC220V connected with terminal 102~103,104~105respectively,102 and 104 are normal power and emergency power live line respective. Terminal 101,106 are acting as a signal lamp to control the power supply. Note:101 and 106 couldn’t be connected with any other lines. When above(under) input line, under(above)terminal Ⅰ and Ⅱ line A, B, C phases will be connected with copper lines or lines acting as output.

Send Inquiry

Product Description

Wenzhou Changjiu Technology Co., Ltd. is a professional China GATS-G Isolation Automatic Transfer Switch (ATS) manufacturer and supplier, known for its quality service. Adhering to the pursuit of perfect quality of products, so that our GATS-G Isolation Automatic Transfer Switch (ATS) have been satisfied by many customers. In order to ensure the quality and customer needs, we have cooperated with domestic power groups with strong production strength. We will strictly screen each supplier and send videos to customers to watch.

1. The primary wiring diagram to see the picture.

2. The control power is derived from normal power, emergency power cand N phases.

3. Ⅰ and Ⅱ line control power AC220V connected with terminal 102~103,104~105 respectively,102 and 104 are normal power and emergency power live line respective.

4. Terminal 101,106 are acting as a signal lamp to control the power supply. Note:101 and 106 couldn’t be connected with any other lines.

5. When above(under) input line, under(above)terminal Ⅰ and Ⅱ line A, B, C phases will be connected with copper lines or lines acting as output.

FEATURES

1. In compliance with GB/T14048.11

2. Rated operating voltage(Ue): AC440V

3. Rated making capacity (A Rms): 10 Ie

4. Rated breaking capacity (A Rms): 8 Ie

5. Rated control supply voltage: DC24V、48V、110V、AC220V

Frame class		100									250					630					1600				3200
Rated current In(A)		16	20	25	32	40	50	63	80	100	125	160	200	225	250	315	350	400	500	630	800	1000	1250	1600	2000	2500	3200
Rated insulation voltage(Ui)		690V														800V
Rated concussion withstand voltage(Uimp)		8KV
Rated working voltage(Ue)		AC400V
Using category		AC-33iB
Rated short-circuit connection capacity		8KA									17KA					26KA					67.5KA
Rated short-time withstand current(lcw)		5kA/30ms									10kA/60ms					12.6kA/60ms					32kA/60ms
Transfer time I-ll or ll-I		2.5s																			1.2s			1.8s			2.4s
Control voltage		DC24V、48V、110V，AC220V
Rated frequency	Start	20W									325W					355W					400W	440W			600W
	Normal										62W					74W					90W	98w			120W
Weight(kg) 4Pole		3.4									6		7.6			15.8			16.8		36	36	37	38.6	55	61	6
